Manufacturing and project capability
Equipment
Representative machinery and operating installations from Dingtian manufacturing and customer projects.

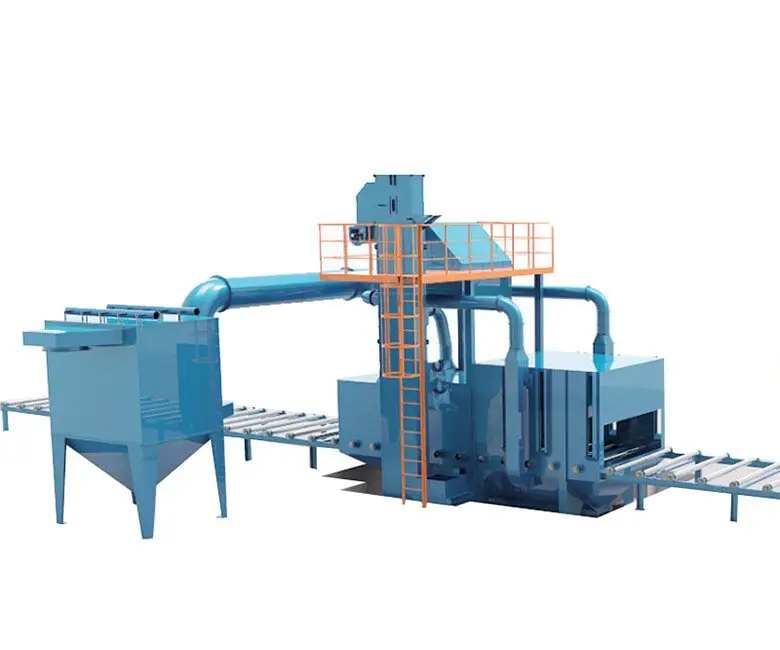

An automatic through-feed system for removing scale, old coatings and surface contaminants from steel plate and sections. Shot blasting exposes clean metal, relieves surface stress and creates a controlled profile that improves coating adhesion, corrosion resistance and service life.

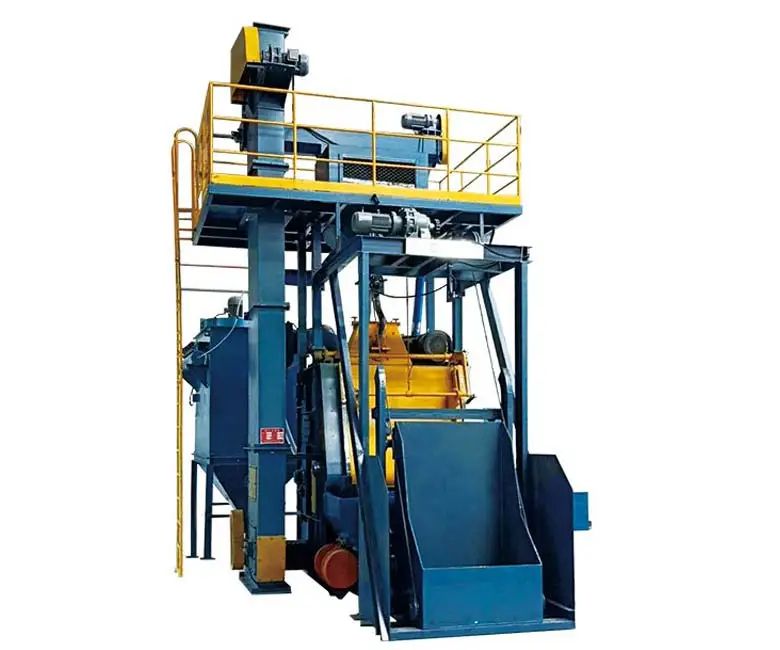

Designed for cleaning, descaling and shot peening small and medium castings, forgings and machined parts. It suits stand-alone or linked production and combines a compact layout with efficient operation and low energy consumption.

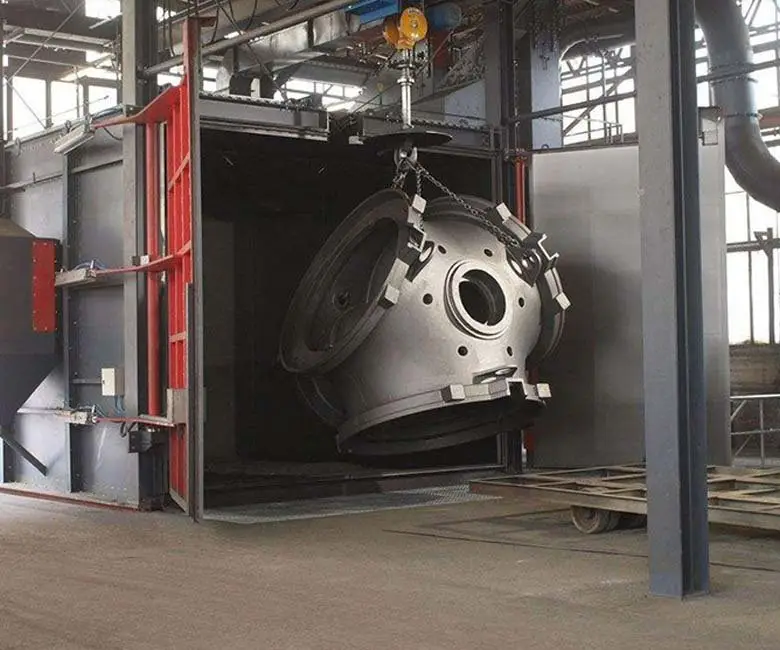

Designed for medium and large castings, forgings, welded assemblies and heat-treated parts, including fragile, slender, thin-wall and irregular workpieces. The suspended loading arrangement supports all-around cleaning without collisions between parts.

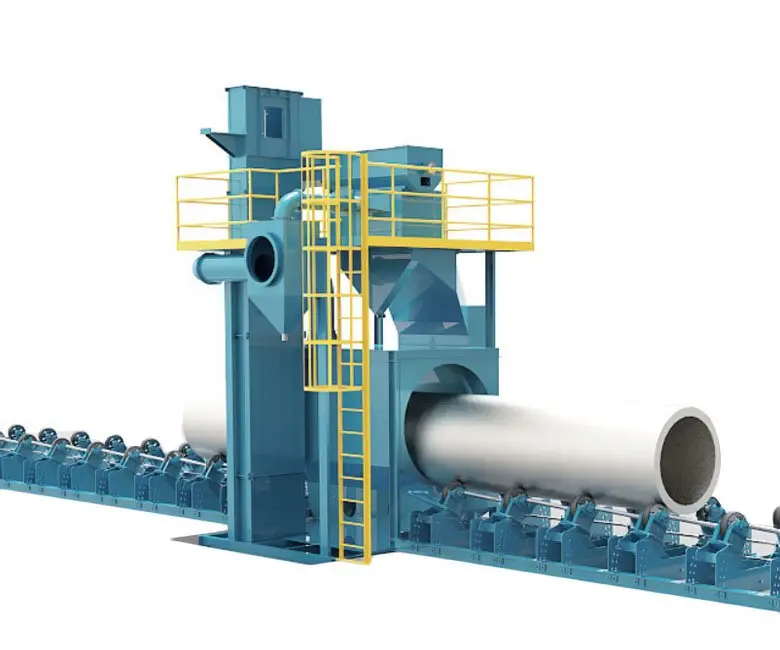

High-velocity abrasive streams remove scale, rust, welding residue and other contaminants from rotating steel pipes. The process produces a clean surface, improves coating adhesion and supports better fatigue and corrosion resistance.

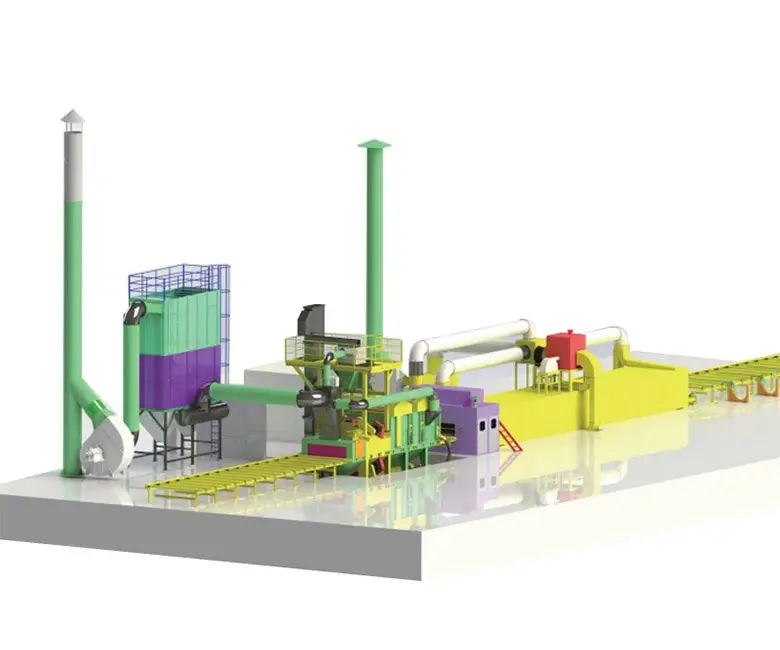

A complete pretreatment process that shot blasts steel before fabrication and applies a protective primer. It improves corrosion resistance and fatigue performance while preparing a consistent surface for CNC cutting, precision blanking and automated painting.

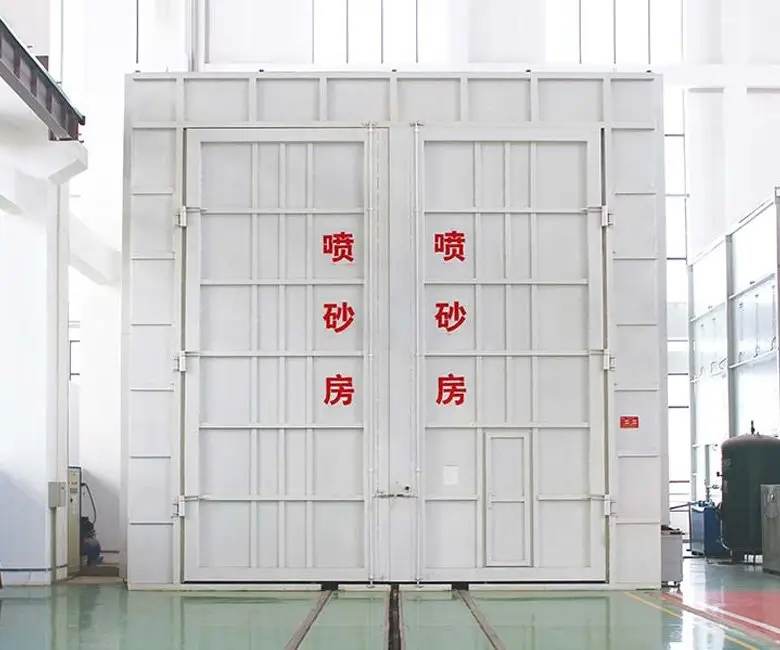

A blast-room system for large castings, forgings, welded structures, construction machinery, boilers and marine components. The integrated design combines the blasting chamber, abrasive circulation, ventilation, dust collection, lighting and electrical controls.

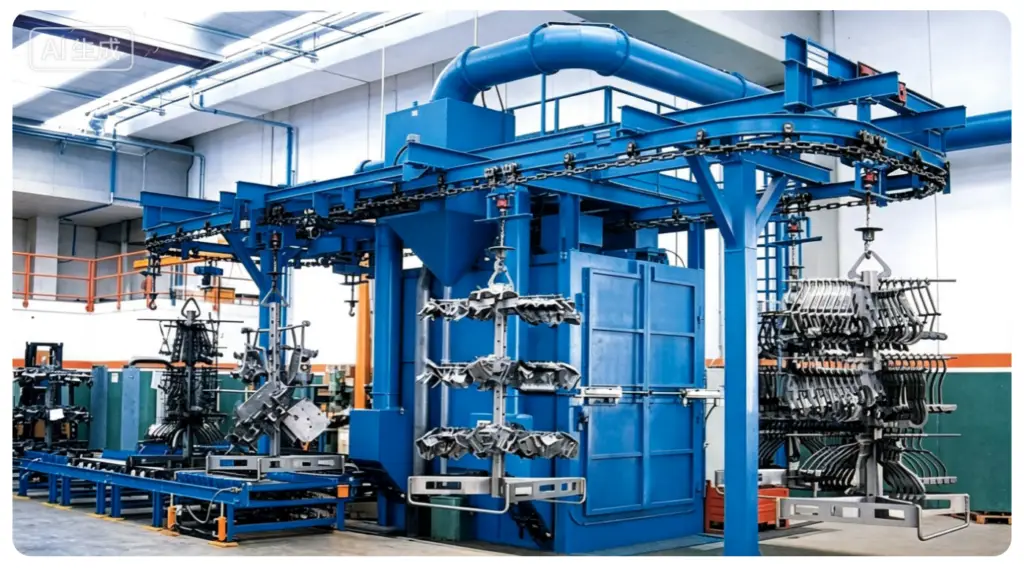

A multi-station conveyor system for high-volume cleaning of cast, forged and welded parts. Automatic transport, positioning and workpiece rotation provide all-around blasting to remove sand, scale, rust and welding residue while improving fatigue strength and coating adhesion.

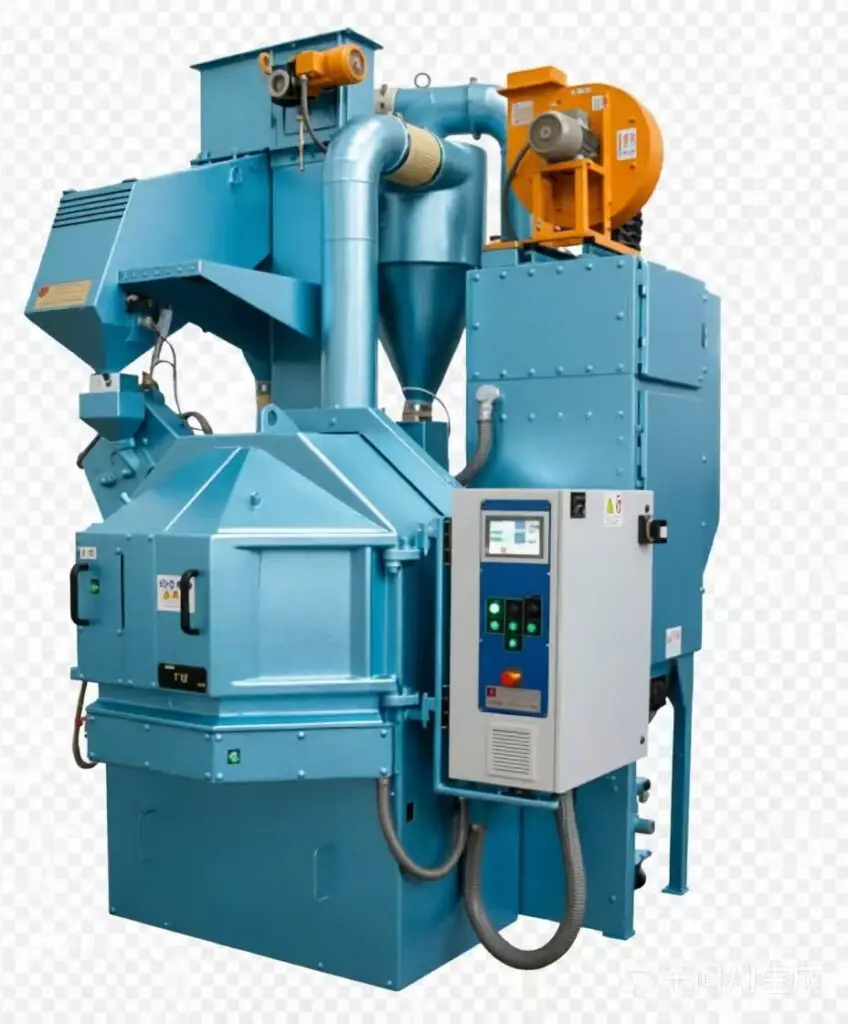

A rotary-table system with an enclosed chamber, separator, elevator, abrasive circulation and blast wheel. Workpieces rotate through the blast stream for all-around treatment, and the table can be stopped for convenient repositioning, loading and unloading.
