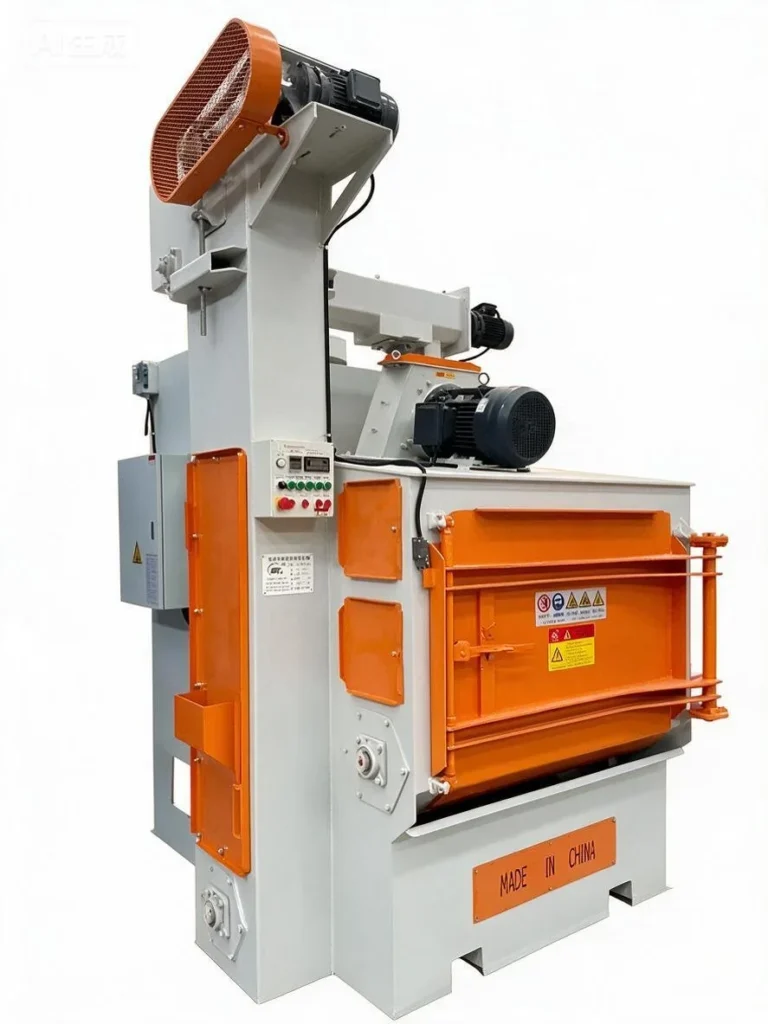

Q32 Series Rubber Crawler Tumble Blast Machine | Surface Treatment Equipment
A compact, efficient cleaning solution for sm…
Request a quoteThe Q32 Series is a highly efficient cleaning solution for small to medium workpieces. Using a durable rubber crawler belt, it continuously tumbles parts while high-speed blast wheels ensure 360° derusting, descaling, and peening without dead corners.
Engineered with a wear-resistant steel-reinforced rubber belt, this machine minimizes part collision and noise. Its compact, pit-free design saves installation costs, while the high-efficiency separator and dust collector ensure eco-friendly operation. With automatic reverse discharge, it is the ideal surface preparation equipment for foundries, auto parts, and hardware industries.
Key Features & Specifications
- Model Options: Q326 / Q3210 Rubber Crawler Blast Machine.
- Application: Derusting, descaling, surface peening, and cleaning.
- Core Tech: 3D Simulated Blast Chamber & Wear-Resistant Rubber Belt.
- Eco-Friendly: High-Efficiency Dust Collector & Abrasive Separator.
- Manufacturer: Jiangsu Dingtian Rust Removal & Coating Equipment Co., Ltd. (Jiangsu, China).
Model Comparison
Compare available models and technical parameters.
| Parameter | Q326 | Q3210 | QR3210 |
|---|---|---|---|
| Productivity (t/h) | 0.6–1.2 | 3–5 | 1.5–2.5 |
| Loading weight (kg) | 200 | 800 | 600 |
| Maximum single-piece weight (kg) | 10 | 30 | 30 |
| Roller diameter (mm) | Φ650 | Φ1000 | Φ1000 |
| Available capacity (m³) | 0.15 | 0.4 | 0.3 |
| Shot blasting capacity (kg/min) | 125 | 360 | 250 |
| Dust extraction air volume (m³/h) | 2200 | 6000 | 5000 |
| Power consumption (kW) | 12.6 | 32.6 | 24.3 |
| Overall dimensions (mm) | 3200×1520×3500 | 4290×1900×4500 | 5850×1950×4600 |
