Engineered by Dingtian

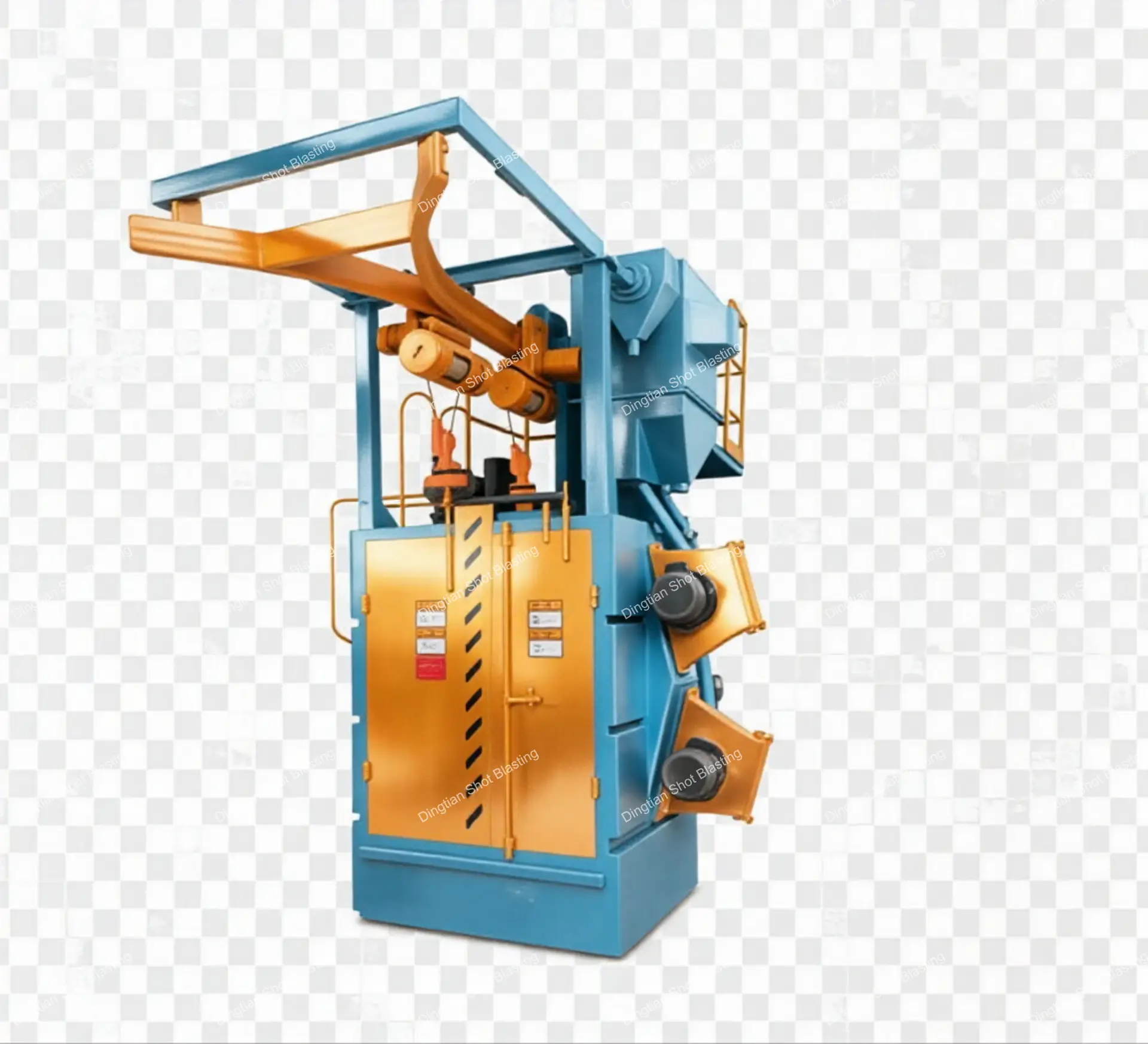

Q37 Hook-Type Shot Blasting Machine – 360° Cleaning for Non-Rotatable Workpieces
360° cleaning for steel structures, castings …
Request a quoteAn ideal solution for steel structures, castings, and forgings that cannot be flipped during blasting.
A single- or double-hook system with a compact, pit-free design – perfect for foundries and steel fabrication shops.
Key Features
- 360° Full Coverage: 3D dynamic-simulation blast wheels eliminate all dead zones.
- Durable Build: Alloy cast-iron wear linings for extended service life.
- Smart Control: Electric-hoist loading and PLC auto-control with bi-directional rotation.
- Eco-Friendly: High-efficiency abrasive separator and dust collector.
Applications: Derusting, desanding, and degreasing for castings, forgings, and welded structures.
Global Markets: Widely exported to Turkey, Latin America, GCC, and Russia.
Why Choose Us?
- Factory-direct pricing from Jiangsu, China.
- Custom solutions based on workpiece size.
- 24/7 technical support and spare parts supply.
Model Comparison
Compare available models and technical parameters.
| Parameter | Q375 | Q376 | Q376E | Q378 | Q378E | Q3710 | Q3710E | Q3720 | Q3730 | Q3750 |
|---|---|---|---|---|---|---|---|---|---|---|
| Hanger arrangement | Single | Single | Double | Single | Double | Single | Double | Single | Single | Single |
| Cleaning size, diameter × height (mm) | 500×1000 | 800×1200 | 800×1200 | 1000×1500 | 1000×1500 | 1200×1600 | 1200×1600 | 1500×2000 | 1500×2000 | 2000×2500 |
| Hook load capacity (kg) | 500 | 600 | 600 | 800 | 800 | 1000 | 1000 | 2000 | 3000 | 5000 |
