Monorail Conveyor Shot Blasting Machine | Overhead Shot-Blasting for Automated Painting Line Integration
Continuous pre-coating surface preparation fo…

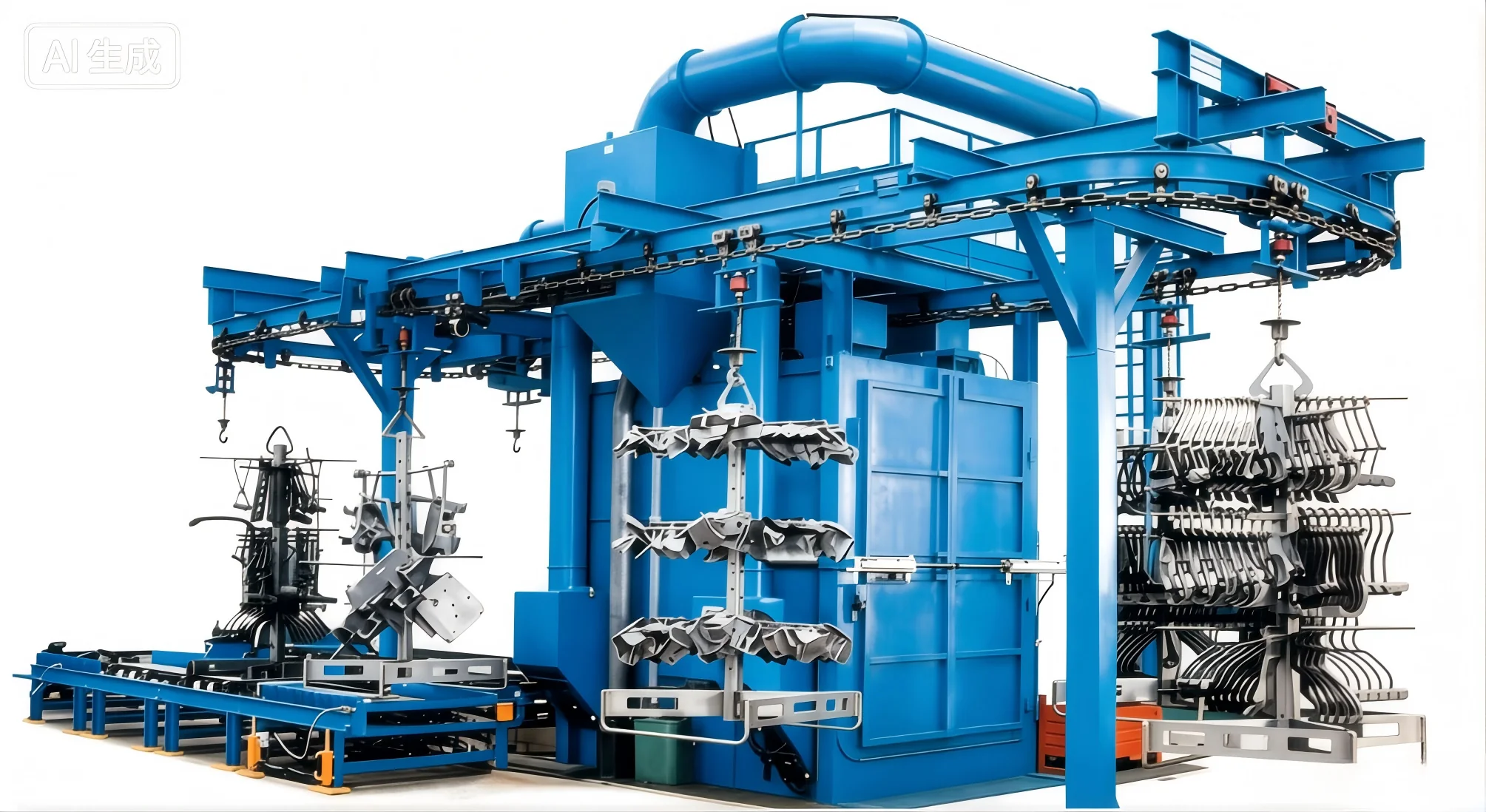

Request a quoteNeed heavy-duty pre-coating surface preparation for your automated painting line? Our Monorail Conveyor Shot Blasting Machine (Overhead Monorail Shot Blaster) hangs workpieces on a moving chain and feeds them through a multi-blast-wheel shot-blasting tunnel. Powered by centrifugal force, it is suitable for agricultural machinery parts, truck chassis frames, structural steel, and high-volume castings and forgings before coating.
Key Features
- Seamless Integration: Adjustable chain speed matches your existing painting line throughput.
- Continuous Pass-Through Shot Blasting: Uniform rust removal and mill-scale descaling for complex heavy-duty parts.
- Heavy-Duty Build: Designed for mass-production surface pre-treatment.
Get a Custom Solution
As a reliable Chinese manufacturer, we offer custom monorail shot-blasting and line-integration solutions. Share your throughput and workpiece dimensions for a tailored quote.
Model Comparison
Compare available models and technical parameters.
| Parameter | Q383 / Q483 | Q385 / Q485 | Q4810 |
|---|---|---|---|
| Cleaning workpiece size (mm) | Φ800×1200 | Φ1000×1500 | Φ1000×2500 |
| Number of work positions | 2 | 2 | 2 |
| Blast wheel quantity | 4 | 4 | 6 |
| Blasting capacity (kg/min) | 4×250 | 4×250 | 6×250 |
| Blast wheel power (kW) | 4×15 | 4×15 | 6×15 |
| Maximum hanger load (kg) | 300 | 500 | 1000 |
| Productivity (hangers/h) | 30–60 | 30–60 | 40–60 |
| Cleaning room size (mm) | 7680×2000×2900 | 7680×2000×2900 | 7680×2000×3800 |
| Total air volume (m³/h) | 17000 | 19000 | 19000 |
| Total power, excluding dust collector (kW) | 73.15 | 73.15 | 114.72 |
